EP94M1E

Part Number:EP94M1E

Overview

EP94M1E is a MHL Receiver with HDMI output and embedded MCU. The chip is compliant with HDMI 1.4b and MHL 1.2 specifications. The chip supports the resolution up to 720p 60 Hz, 1080p 30 Hz or 1080p 60Hz in PackedPixel Mode. The chip also supports on-chip EDID RAM and programmable passive/active DDC switches to lower down system cost and provide the flexibility for the EDID handling. With an embedded MCU on-chip, the chip does not require external MCU to support the RAP/RCP and CEC function. User is not required to develop the software.

Features

•On-chip embedded MCU. No external MCU is required to support the RAP/RCP and CEC function. No software development is required
•On-chip MHL Receiver and HDMI Transmitter core which are compliant with MHL 1.1 and HDMI 1.4b specification
•On-chip MHL/HDMI Bridge with Equalizer
•Supports 1 MHL input port and 1 HDMI output port
•Support up to 75 Mhz Pixel clock rate (8-bit 720p 60 Hz or 1080p 30Hz)
•Support up to 148.5 Mhz Pixel clock rate in PackedPixel Mode(8-bit 1080p 60 Hz)
•Support on-chip EDID RAM
•Support on-chip programmable passive/active DDC switches
•Support the RAP/RCP Function
•Support the CEC Function
•Low stand-by current (< 1mA) at power down mode •Pin compatible to EP94M0E •48-pin QFN package

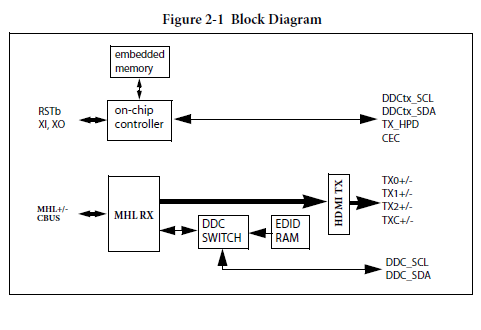

Block Diagram
